Core Components and Ink Choices in UV Printing
As UV printing technology continues to advance and gain popularity, more industries are adopting this cutting-edge technology to achieve precise and efficient print results. The performance of a UV printer is not only dependent on the machine itself but also closely related to the choice and compatibility of various accessories. Components such as the print head, ink, ink tubes, and others play a crucial role in the printing process, determining the quality of prints and the stability of the machine. This article will provide a detailed introduction to the main parts of UV printers, the types of inks available, and how to choose the right accessories to enhance print quality and ensure long-term stable operation of the equipment.
Core Components: The "Brain" and "Heart" of UV Printers
The core components of a UV printer include the print head, mainboard, servo motor, guide rails, LED curing lamp, and printing platform. These parts work together to ensure high print quality and the stability of the printing process.
The print head is the key component of a UV printer, responsible for precisely spraying ink onto the substrate to create patterns. Common print head brands include Epson, Ricoh, and Kyocera. Each brand offers different inkjet technologies and accuracy levels, and users should choose the appropriate brand and model based on their specific needs.
The mainboard is the "brain" of the UV printer, controlling the entire operation, including print accuracy, speed, and parameter adjustments. Common mainboard brands include Hansen and Weprint. A stable mainboard ensures that errors during printing are minimized, helping maintain high-quality output.
The servo motor drives the movement of the print head and other components, ensuring accuracy and stability during the printing process. Working in tandem with the servo motor are the guide rails, which guide the print head's precise movement, directly affecting the evenness and accuracy of the print.
Additionally, the LED curing lamp plays a key role in quickly curing the ink after printing, ensuring that the ink adheres firmly to the surface of the substrate. The printing platform is where the substrate is placed, and some high-end platforms are equipped with vacuum functions to prevent materials from warping during printing, which could affect print quality.
Ink Supply System: Ensuring Smooth Ink Flow
The ink supply system is crucial to the operation of the UV printer. It includes ink cartridges, ink tubes, and filters, which work together to ensure that ink flows smoothly and prevents clogging.
The ink cartridges are containers that store the ink, typically divided into main and auxiliary cartridges, while the ink tubes are responsible for transporting the ink to the print head. The filters serve to filter out impurities during ink flow, preventing them from entering the ink tubes or print heads, which could result in clogs or uneven prints.

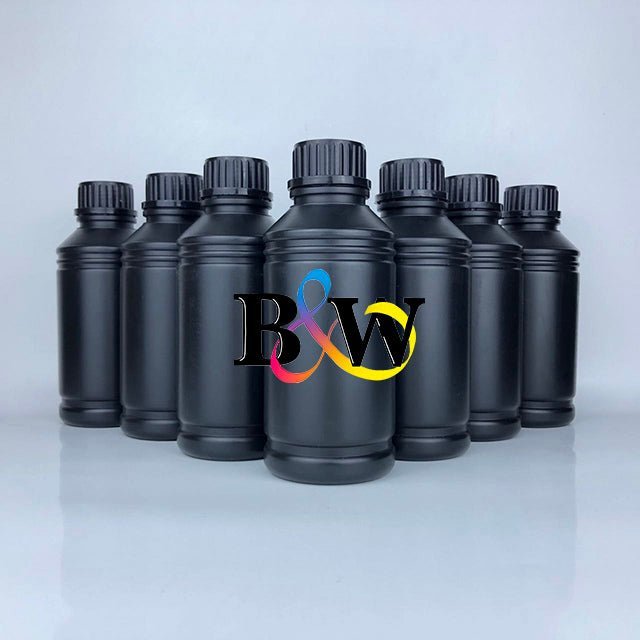

UV printers typically use special UV ink, which needs to be cured under ultraviolet light. Depending on the printing needs, users can choose from various types of ink, including hard UV ink, soft UV ink, and neutral UV ink.
Types of UV Ink and Their Suitable Materials: Choosing the Right Ink for Your Needs
UV ink comes in various types, each designed for specific materials. Selecting the right ink is crucial to achieving the best print results.
Hard UV ink is suitable for rigid materials such as tiles, metals, wood, hard plastics, acrylic, and glass. This ink has strong adhesion and high hardness after curing, making it ideal for materials that do not need to bend or fold. However, it may crack when applied to materials that require flexibility.
In contrast, soft UV ink is suitable for flexible materials such as PVC films, fabric banners, wallpapers, vehicle wraps, leather, and textiles. Soft ink has excellent elongation properties, ensuring that it remains intact even when the material is bent or folded, without cracking.
Neutral UV ink falls between hard and soft inks in terms of hardness and adhesion. It is suitable for medium-hard materials such as acrylic, PS boards, PVC foam boards, and KT boards.
Auxiliary Fittings: Ensuring Smooth Printing
In addition to core components and the ink supply system, UV printers rely on auxiliary accessories to maintain print quality and stability. Common auxiliary parts include the vacuum adsorption platform, trays and molds, and sensors.
The vacuum adsorption platform is used to secure the substrate in place, preventing any movement during printing, which could compromise the print quality. Trays and molds are used for positioning objects with specific shapes, such as golf balls, bottles, etc., ensuring precise printing.
During the printing process, sensors play a vital role. Height sensors ensure that the distance between the print head and substrate remains consistent, while ink cartridge sensors monitor the ink levels and prevent interruptions due to insufficient ink.
The UV Printing Process: From Design to Completion
The UV printing process typically consists of four main stages: preparation, print settings, the printing process, and completion and inspection.
The preparation stage involves designing the print pattern, preparing materials, and checking the equipment to ensure it is functioning properly.
Next, during the print settings stage, the user places the material on the printing platform, adjusts the printing parameters, and inspects the ink. The equipment must verify that all parameters and ink ratios are correct to achieve the best print results.
During the printing process, the UV printer begins spraying ink, which is precisely applied to the material's surface and instantly cured under the LED curing lamp. For more complex patterns or prints requiring higher color saturation, multi-layer printing may be performed, with each layer of ink being instantly cured.
Finally, in the completion and inspection stage, the user checks the print quality to ensure that the patterns are clear, the colors are uniform, and performs any necessary maintenance on the equipment to ensure it stays in optimal condition.
Conclusion
The development of UV printing technology has provided industries with a more precise and efficient printing solution. However, achieving optimal print quality requires more than just a high-performance UV printer; the choice of accessories and ink also plays a critical role. By selecting and using the right inks and accessories, users can not only enhance print quality but also extend the longevity of their equipment. Understanding the characteristics of various accessories and ink types will help users make more informed decisions when choosing UV printers, ensuring smooth and successful printing operations.
